Description

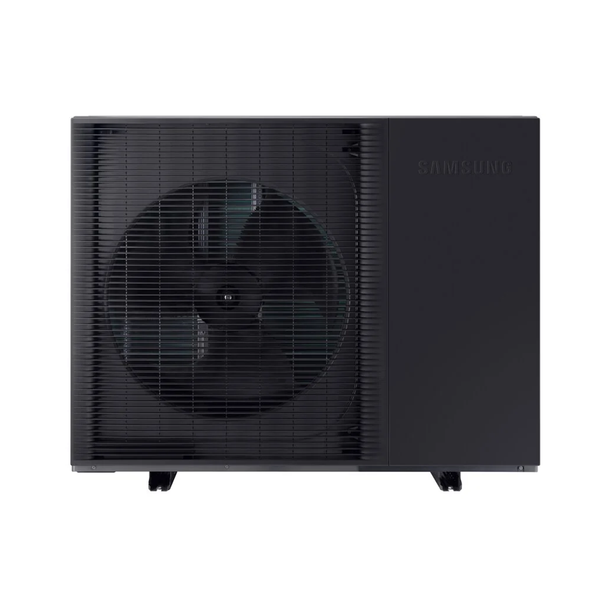

Upgrade your home heating with the Samsung EHS Mono R290 12kW Air Source Heat Pump (AE120CXYBEK/EU). Engineered for modern residential heating and domestic hot water demands, this monobloc unit delivers high-efficiency performance using the natural, eco-friendly R290 refrigerant with an exceptionally low Global Warming Potential (GWP) of just 3.
Capable of producing high-temperature water output up to 75°C, the Samsung EHS Mono R290 is an ideal direct boiler replacement for retrofit projects using existing radiators, as well as new-build low-temperature underfloor heating systems. Its sleek, contemporary dark grey exterior complements modern architecture while offering quiet, unobtrusive operation.
Key Features & Benefits:
-
High-Temperature Flow Rates: Delivers domestic hot water and heating flow temperatures up to 75°C, making it suitable for properties with standard radiators without requiring extensive pipework alterations.
-
Eco-Friendly R290 Refrigerant: Uses propane (R290) natural refrigerant to drastically reduce environmental impact while enhancing thermal efficiency in cold climates.
-
Reliable Low-Ambient Performance: Maintains 100% heating performance down to temperatures as low as -10°C, ensuring reliable warmth throughout harsh British winters.
-
Quiet Mark Certified Operation: Features a multi-layered sound insulation system and 4-step quiet modes, operating at low sound pressure levels down to 35 dB(A) at a 3-metre distance.
-
Monobloc Architecture: All refrigeration components are fully sealed inside the outdoor unit, removing the requirement for on-site refrigerant handling and streamlining installation for heating engineers.
-
Smart Connectivity: Integrates seamlessly with the Samsung SmartThings app (via optional Wi-Fi kit) to provide remote temperature scheduling, energy monitoring, and automated efficiency controls.
Technical Specifications:
| Specification | Detail |
| Model Code | AE120CXYBEK/EU |
| Product Type | Air-to-Water Monobloc Heat Pump |
| Nominal Heating Capacity | 12.0 kW |
| Refrigerant Type | R290 (GWP = 3) |
| Maximum Flow Temperature | Up to 75°C |
| Power Supply | 220–240 V, 1 Phase, 50 Hz |
| Operating Temperature Range (Heating) | -25°C to 35°C |
| Net Dimensions (W × H × D) | 1270 × 1018 × 530 mm |
| Packaged Dimensions (W × H × D) | 1330 × 1226 × 630 mm |
| Net / Shipping Weight | 154 kg / 166 kg |
| Energy Efficiency Rating | ErP A+++ (at 35°C water outlet) |
